SECTION 28: Aileron Bellcrank and Pushrod
Jump to navigation
Jump to search
Before You Start
Build Instruction Updates
- Check for more recent updates here
Videos
- Van's RV-15 Aileron Bellcrank & Pushrod Assembly — Stopped by Backordered Parts (Episode 8) — Average Joe's Airspeed Acres
Modifications to Consider
- None
Special Tools / Supplies
General Build Notes
- None
Revision History
- R2 - Initial release to builders
Specific Build Notes
Page 28-09 (R2)
Instructions should read:
- Step 1: Cleco then rivet 4 to both ends of 1 with 5. Ensure correct clocking from match drill operation.
- Step2 : Thread 3 into 2 then 4. Do not tighten.
Page 28-12 (R2)
Instructions should read:
- Step 1: Cleco then rivet 4 to both ends of 1 with 5. Ensure correct clocking from match drill operation.
- Step 2: Thread 3 into 2 then 4. Do not tighten.
Page 28-14 (R2)
- Note that the rivet callout for the mid bellcrank (28-14) is AN470AD4-6 and the callout for the outboard bellcrank (28-16) is AN470AD4-7.
- The KAI calls for match drilling the bellcrank rivet holes. At least one builder found all rivets fit perfectly as-punched with no match drilling needed on either part — test-fit the rivets before drilling; you may be able to skip it. Applies to Page 28-16 as well.
Page 28-16 (R2)

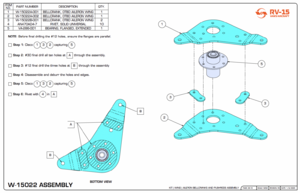

- W-15022-00X outer mixer box bellcrank — the LEFT and RIGHT are NOT interchangeable (they are mirror images). Flipping the bearing upside down reverses the orientation for the right side.
Page 28-19 (R2)
- The mid bellcrank should be oriented with the long leg pointing into the wing.
Page 28-19 through Page 28-21 (R2)
- The AN3-10A pushrod bolts can bottom on threads before the rod end bearing is fully secured. Add one extra washer on the bolt side during assembly. Exception, the washer must go on the nut side only — placing it under the bolt head causes interference with the mixer box structure.
Page 28-20 and 28-21 (R2)
- Until final installation, protect the pushrods from contact scratching — wrap the unconnected pushrod ends and/or apply electrical tape to the edges of the rib holes the rods pass through. Remove the tape at final install.
