SECTION 25: Inboard Mixer Box

Before You Start

Build Instruction Updates

• Check for more recent updates here

Videos

• RV-15 Inboard Mixer Box Assembly — Tight Tolerances Everywhere (Episode 5) — Average Joe's Airspeed Acres

Modifications to Consider

• None

General Build Notes

• W-15011E-001 rib extra tab: Same rib used in this section as in SECTION 22: Rear Wing Spar. If not already trimmed at Section 22, inspect and trim the extra lower tab before proceeding. See SECTION 22: Rear Wing Spar for full details and SECTION 31: Wing Skins for an example of the extra tab.

Revision History

• R2 - Initial release to builders

Specific Build Notes

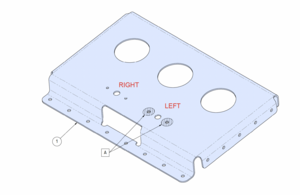

L and R mixer box locations for nut plate

Page 25-02 (R2)

• Lists eight required NAS1097AD3-3.5 rivets. Confirmed with Van's that AN426s can be substituted. Only 8 total NAS1097s are in the kit; 12 are required between Sections 23 and 25 combined.

Pages 25-07 and 25-08 (R2)

• Shows the nut plate location for the LEFT mixer box. Confirmed with Van's that the RIGHT side mixer box uses the other hole. Verify L/R orientation before installing.
